RUD VIP-unmistakable fork-shackle type VV-GSCH 4000 kg / 10 mm

Item number: VV.GS.V0.10

Manufacturer number: 7102024

EAN: 4008244218812

Working load limit (kg) / nominal size chain (mm)

82,30 €

Excluding 16% VAT. , plus shipping

Delivery status: on demand



High tensile version with an integrated safety thread in the shackle bracket. Smooth bolt support in the shackle on both sides. The bolt is turnable. No bending strength in the thread (only a securing function). Optimal adaptation - max. mouth width with the smallest shackle bolt. Owing to the turned clevis connection, it is extensively resistant to bending. Long term securing by driving in the pre-assembled tensioning sleeve. Special thread, thus distinctive in comparison to other shackle bolts. Pre-assembled connecting bolt and tensioning sleeve.

Chain diameter: 10 mm
Product weight: 0,65 Kg
Loading capacity (kg): 4000kg
Globus item number: 18316

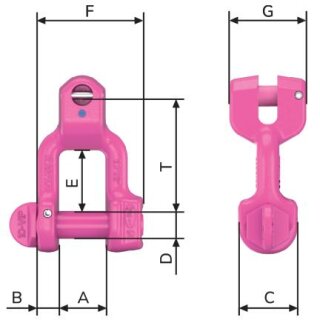

Dimension B: 13mm
Dimension H: 45mm
Material number: 7102024
Dimension E: 35mm
Dimension D: 16mm
Dimension G: 62mm
Dimension C: 34mm
Dimension T: 61mm
Dimension A: 27mm
Nominal thickness of chain: 10mm
Description: VV-GSCH-10
