RUD VIP-unmistakable fork-shackle type VV-GSCH 6700 kg / 13 mm

Item number: VV.GS.V0.13

Manufacturer number: 7102025

EAN: 4008244218829

Working load limit (kg) / nominal size chain (mm)

121,90 €

Excluding 16% VAT. , plus shipping

Delivery status: on demand



High tensile version with an integrated safety thread in the shackle bracket. Smooth bolt support in the shackle on both sides. The bolt is turnable. No bending strength in the thread (only a securing function). Optimal adaptation - max. mouth width with the smallest shackle bolt. Owing to the turned clevis connection, it is extensively resistant to bending. Long term securing by driving in the pre-assembled tensioning sleeve. Special thread, thus distinctive in comparison to other shackle bolts. Pre-assembled connecting bolt and tensioning sleeve.

Chain diameter: 13 mm
Lifting capacity: 6700 kg
Product weight: 1,35 Kg
Loading capacity (kg): 6700kg
Globus item number: 18317

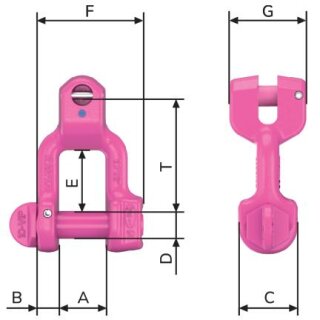

Dimension B: 17mm
Dimension H: 59mm
Material number: 7102025
Dimension E: 41mm
Dimension D: 20mm
Dimension G: 81mm
Dimension C: 42mm
Dimension T: 78mm
Dimension A: 33mm
Nominal thickness of chain: 13mm
Description: VV-GSCH-13
