RUD VIP-unmistakable fork-shackle type VV-GSCH 20000 kg / 22 mm

Name: RUD VIP-unmistakable fork-shackle type VV-GSCH 20000 kg / 22 mm
SKU: VV.GS.V4.22
Availability: InStock

SKU: VV.GS.V4.22 GTIN: 4008244279387 HAN: 7102027

Manufacturers: RUD Ketten Rieger & Dietz

ACHTUNG AUSLAUFARTIKEL

Dieser Artikel wird durch den RUD Schäkel VCCS-FASTLOX ersetzt.

Working load limit (kg) / nominal size chain (mm)

Price on request

Pay securely via:

Industrial quality

Service

Wide Choice

Artikelinfos

Item information	Value
Item weight:	6,70 kg
Globus item number:	28433
Nominal thickness of chain (mm):	22
Material number:	7102027

Entdecke mehr von RUD Ketten Rieger & Dietz in unserem Shop.

RUD VIP-unmistakable fork-shackle type VV-GSCH 20000 kg / 22 mm

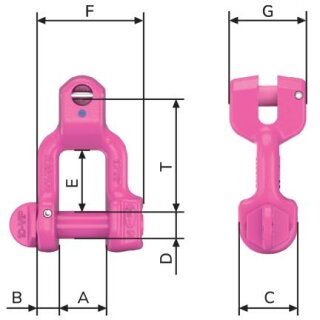

Technical Data	Type	WLL (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	G (mm)	H (mm)	T (mm)	Item weight
VV.GS.V4.06	VV-GSCH-6	1500	17	8	22	10	21	40	28	36	0,15 kg
VV.GS.V0.08	VV-GSCH-8	2500	21	10	26	12	32	48	39	48	0,26 kg
VV.GS.V0.10	VV-GSCH-10	4000	27	13	34	16	35	62	45	61	0,65 kg
VV.GS.V0.13	VV-GSCH-13	6700	33	17	42	20	41	81	59	78	1,35 kg
VV.GS.V0.16	VV-GSCH-16	10000	38	22	49	24	49	95	69	96	2,50 kg
VV.GS.V4.20	VV-GSCH-20	16000	47	27	60	30	57	119	88	108	3,90 kg
VV.GS.V4.22	VV-GSCH-22	20000	53	30	76	36	72	130	95	132	6,70 kg

Artikelinfos

Item information	Value
Item weight:	6,70 kg
Globus item number:	28433
Nominal thickness of chain (mm):	22
Material number:	7102027

Similar items

Tragfähigkeit (kg) / Kettennenndicke (mm): 1500kg / 6mm

Price on request

Tragfähigkeit (kg) / Kettennenndicke (mm): 2500kg / 8mm

Price on request

Tragfähigkeit (kg) / Kettennenndicke (mm): 4000kg / 10mm

Price on request

Tragfähigkeit (kg) / Kettennenndicke (mm): 6700kg / 13mm

Price on request

Tragfähigkeit (kg) / Kettennenndicke (mm): 10000kg / 16mm

Price on request

Tragfähigkeit (kg) / Kettennenndicke (mm): 16000kg / 20mm

Price on request

Tragfähigkeit (kg) / Kettennenndicke (mm): 20000kg / 22mm

Price on request

High tensile version with an integrated safety thread in the shackle bracket. Smooth bolt support in the shackle on both sides. The bolt is turnable. No bending strength in the thread (only a securing function). Optimal adaptation - max. mouth width with the smallest shackle bolt. Owing to the turned clevis connection, it is extensively resistant to bending. Long term securing by driving in the pre-assembled tensioning sleeve. Special thread, thus distinctive in comparison to other shackle bolts. Pre-assembled connecting bolt and tensioning sleeve.

Item information	Value
Item weight:	6,70 kg
Globus item number:	28433
Nominal thickness of chain (mm):	22
Material number:	7102027

Katalog VIP Ketten und Zubehör

Download
