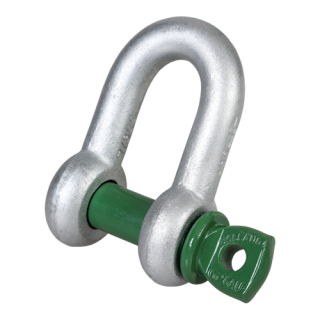

Green Pin Dee Shackle, WLL

Item number: GPGDBB19

Standard dee shackle with screw collar pin
Working load limit (kg)

11,53 €

Excluding 16% VAT. , plus shipping

Delivery status: on demand



Material: bow and pin high tensile steel, grade 6, quenched and tempered, Safety Factor: MBL equals 6 x WLL, Standard: EN13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 3, grade A, from 2 t upward these shackles comply with ASME B30.26, Finish: hot dipped galvanized, Temperature Range: -40°C up to +200°C, If extreme temperature situations occur, the following load reductions must be taken into account: up to 200°C = 100% of original Working Load Limit, 200-300°C = 90% of original Working Load Limit, 300-400°C = 75% of original Working Load Limit, > 400°C = not allowed

Green Pin Dee Shackle, WLL
Version: Standard dee shackle with screw collar pin
Lifting capacity: 4,75 t
Product weight: 0,87 Kg
Dimension H (mm): 103
Dimension A (mm): 19
Dimension B (mm): 22
Dimension C (mm): 46
Dimension D (mm): 19
Dimension E (mm): 31
Dimension F (mm): 59
Dimension G (mm): 112
