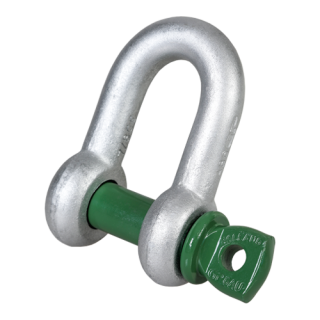

Green Pin Dee Shackle, WLL

Name: Green Pin Dee Shackle, WLL
SKU: GPGDBB35
Price: 108.25 EUR
Availability: InStock

SKU: GPGDBB35 HAN: GPGDBB35

Manufacturers: van Beest GmbH

Standard dee shackle with screw collar pin

Working load limit (t)

Delivery time: 5 Workdays

108,25 €

excl. 19% VAT , plus

pcs

Pay securely via:

Industrial quality

Service

Wide Choice

Entdecke mehr von van Beest GmbH in unserem Shop.

Technical Data	WLL (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	Item weight
GPGDBB06	500	7	8	16,5	7	12	22	41,5	38	0,05 kg
GPGDBB08	750	9	10	20	9	13,5	26	50	46,5	0,09 kg
GPGDBB10	1000	10	11	22,5	10	17	32	59	54	0,14 kg
GPGDBB11	1500	11	13	26,5	11	19	37	68	59,5	0,19 kg
GPGDBB13	2000	13,5	16	34	13	22	43	81	73	0,32 kg
GPGDBB16	3250	16	19	40	16	27	51	97	89	0,54 kg
GPGDBB19	4750	19	22	46	19	31	59	112	103	0,87 kg
GPGDBB22	6500	22	25	52	22	36	73	134	119	1,34 kg
GPGDBB25	8500	25	28	59	25	43	85	154	137	2,08 kg
GPGDBB28	9500	28	32	66	28	47	90	167	153	2,77 kg
GPGDBB32	12000	32	35	72	32	51	94	180	170	3,72 kg
GPGDBB35	13500	35	38	80	35	57	115	209	186	5,44 kg
GPGDBB38	17000	38	42	88	38	60	127	230	203	6,85 kg
GPGDBB45	25000	45	50	103	45	74	149	271	243	11,50 kg
GPGDBB50	35000	50	57	111	50	83	171	305	272	16,90 kg
GPGDBB57	42500	57	65	130	57	95	190	345	310	24,60 kg
GPGDBB65	55000	65	70	145	65	105	203	376	344	32,70 kg
GPGDBB05	330	5	6	12	5	9,5	19	33	29,5	N/A

Similar items

Tragfähigkeit (t): 0,50 t

6,20 € *

Tragfähigkeit (t): 0,75 t

8,03 € *

Tragfähigkeit (t): 1,00 t

8,33 € *

Tragfähigkeit (t): 1,50 t

9,48 € *

Tragfähigkeit (t): 2,00 t

11,83 € *

Tragfähigkeit (t): 3,25 t

14,60 € *

Tragfähigkeit (t): 4,75 t

19,93 € *

Tragfähigkeit (t): 6,50 t

27,80 € *

Tragfähigkeit (t): 8,50 t

44,43 € *

Tragfähigkeit (t): 9,50 t

68,15 € *

Tragfähigkeit (t): 12,0 t

87,20 € *

Tragfähigkeit (t): 13,5 t

108,25 € *

Tragfähigkeit (t): 17,0 t

148,75 € *

Tragfähigkeit (t): 25,0 t

232,43 € *

Tragfähigkeit (t): 35,0 t

297,63 € *

Tragfähigkeit (t): 42,5 t

629,05 € *

Tragfähigkeit (t): 55,0 t

776,98 € *

Tragfähigkeit (t): 0,33 t

6,15 € *

Material: bow and pin high tensile steel, grade 6, quenched and tempered, Safety Factor: MBL equals 6 x WLL, Standard: EN13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 3, grade A, from 2 t upward these shackles comply with ASME B30.26, Finish: hot dipped galvanized, Temperature Range: -40°C up to +200°C, If extreme temperature situations occur, the following load reductions must be taken into account: up to 200°C = 100% of original Working Load Limit, 200-300°C = 90% of original Working Load Limit, 300-400°C = 75% of original Working Load Limit, > 400°C = not allowed

Item information	Value
Item weight:	5,44 kg
