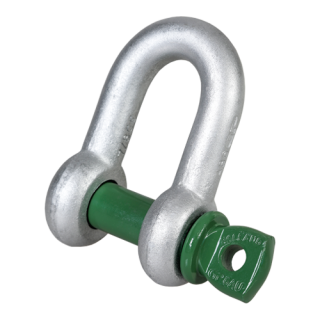

Green Pin Dee Shackle, WLL

SKU: GPGDBB19

Globus item number: 38210

Standard dee shackle with screw collar pin
Working load limit (t)

18,87 €

excl. 19% VAT , plus shipping costs

Delivery time: 5 Workdays



Material: bow and pin high tensile steel, grade 6, quenched and tempered, Safety Factor: MBL equals 6 x WLL, Standard: EN13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 3, grade A, from 2 t upward these shackles comply with ASME B30.26, Finish: hot dipped galvanized, Temperature Range: -40°C up to +200°C, If extreme temperature situations occur, the following load reductions must be taken into account: up to 200°C = 100% of original Working Load Limit, 200-300°C = 90% of original Working Load Limit, 300-400°C = 75% of original Working Load Limit, > 400°C = not allowed

Green Pin Dee Shackle, WLL
Lifting capacity:
Item weight:
0,87 kg
Globus Artikelnummer:
38210
Dimension H (mm):
103
Dimension A (mm):
19
Dimension B (mm):
22
Dimension C (mm):
46
Dimension D (mm):
19
Dimension E (mm):
31
Dimension F (mm):
59
Dimension G (mm):
112
