RUD VIP-wide-jaw-opening hook type VWH 6700 kg / 13 mm

Item number: V.VWH.SO.13

Manufacturer number: 7100213

EAN: 4008244244859

Working load limit (kg) / nominal size chain (mm)

103,40 €

Excluding 16% VAT. , plus shipping

Delivery status: on demand



Often referred to as the container hook. Considerably larger mouth width than VCGH but without a safety latch.

Use only where unintentional unhooking is impossible. Inappropriate for overhead lifting! When using foundry hooks, special attention must be paid and a risk assessment must be carried out before using.

• Robust cross section (Size C/G) is resistant against increased lateral forces
• Specially designed wearing edges to protect the chain link, compare the dimension "E"
• Gauge marks for measuring the width of the hook opening
• Connecting bolt and tensioning sleeve are pre-assembled


Chain diameter: 13 mm
Lifting capacity: 6700 kg
Product weight: 3,00 Kg
Loading capacity (kg): 6700kg
Globus item number: 18525

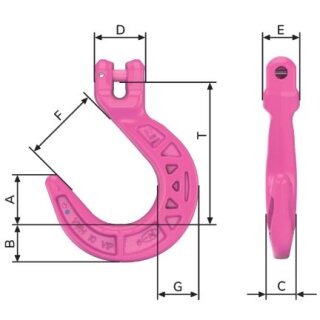

Dimension B: 44mm
Material number: 7100213
Dimension F: 90mm
Dimension E: 46mm
Dimension D: 64mm
Dimension G: 47mm
Dimension C: 31mm
Dimension T: 168mm
Dimension A: 58mm
Nominal thickness of chain: 13mm
