RUD VIP-wide-jaw-opening hook type VWH 20000 kg / 22 mm

SKU: V.VWH.V0.22 GTIN: 4008244287672 HAN: 7998158

Manufacturers: RUD Ketten Rieger & Dietz

Working load limit (kg) / nominal size chain (mm)

Delivery time: 0 Workdays

401,00 €

excl. 19% VAT , plus

Pay securely via:

Industrial quality

Service

Wide Choice

Artikelinfos

Item information	Value
Item weight:	15,30 kg
Globus item number:	28502
Nominal thickness of chain (mm):	22
Material number:	7998158

Entdecke mehr von RUD Ketten Rieger & Dietz in unserem Shop.

RUD VIP-wide-jaw-opening hook type VWH 20000 kg / 22 mm

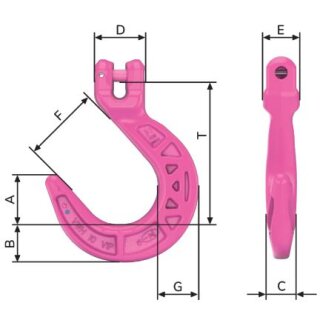

Technical Data	Type	WLL (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	T (mm)	Item weight
V.VWH.SO.06	VWH-6	1500	32	24	24	32	22	50	24	90	0,44 kg
V.VWH.SO.08	VWH-8	2500	41	31	24	42	29	64	32	121	1,00 kg
V.VWH.SO.10	VWH-10	4000	49	37	30	50	36	76	40	143	1,75 kg
V.VWH.SO.13	VWH-13	6700	58	44	31	64	46	90	47	168	3,00 kg
V.VWH.SO.16	VWH-16	10000	66	50	39	75	56	100	55	193	4,70 kg
V.VWH.V0.20	VWH-20	16000	96	80	74	102	80	136	80	277	15,10 kg
V.VWH.V0.22	VWH-22	20000	96	80	74	102	80	136	80	277	15,30 kg

Artikelinfos

Item information	Value
Item weight:	15,30 kg
Globus item number:	28502
Nominal thickness of chain (mm):	22
Material number:	7998158

Similar items

Tragfähigkeit (kg) / Kettennenndicke (mm): 1500kg / 6mm

Tragfähigkeit (kg) / Kettennenndicke (mm): 2500kg / 8mm

Tragfähigkeit (kg) / Kettennenndicke (mm): 4000kg / 10mm

Tragfähigkeit (kg) / Kettennenndicke (mm): 6700kg / 13mm

Tragfähigkeit (kg) / Kettennenndicke (mm): 10000kg / 16mm

Tragfähigkeit (kg) / Kettennenndicke (mm): 16000kg / 20mm

Tragfähigkeit (kg) / Kettennenndicke (mm): 20000kg / 22mm

Often referred to as the container hook. Considerably larger mouth width than VCGH but without a safety latch.

Use only where unintentional unhooking is impossible. Inappropriate for overhead lifting! When using foundry hooks, special attention must be paid and a risk assessment must be carried out before using.

• Robust cross section (Size C/G) is resistant against increased lateral forces
• Specially designed wearing edges to protect the chain link, compare the dimension "E"
• Gauge marks for measuring the width of the hook opening
• Connecting bolt and tensioning sleeve are pre-assembled

Item information	Value
Item weight:	15,30 kg
Globus item number:	28502
Nominal thickness of chain (mm):	22
Material number:	7998158

Katalog VIP Ketten und Zubehör
