RUD VIP-wide-jaw-opening hook type VWH 4000 kg / 10 mm

Item number: V.VWH.SO.10

Manufacturer number: 7100212

Globus item number: 18524

EAN: 4008244244842

Working load limit (kg) / nominal size chain (mm)

75,70 €

Excluding 19% VAT. , plus shipping

Delivery status: on demand



Often referred to as the container hook. Considerably larger mouth width than VCGH but without a safety latch.

Use only where unintentional unhooking is impossible. Inappropriate for overhead lifting! When using foundry hooks, special attention must be paid and a risk assessment must be carried out before using.

• Robust cross section (Size C/G) is resistant against increased lateral forces
• Specially designed wearing edges to protect the chain link, compare the dimension "E"
• Gauge marks for measuring the width of the hook opening
• Connecting bolt and tensioning sleeve are pre-assembled


Chain diameter: 10 mm
Product weight: 1,75 Kg
Loading capacity (kg): 4000kg
Globus item number: 18524

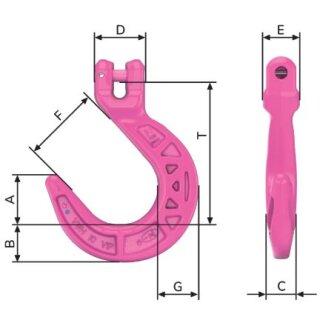

Dimension B: 37mm
Material number: 7100212
Dimension F: 76mm
Dimension E: 36mm
Dimension D: 50mm
Dimension G: 40mm
Dimension C: 30mm
Dimension T: 143mm
Dimension A: 49mm
Nominal thickness of chain: 10mm
