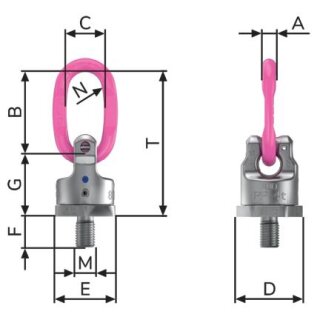

| Technical Data | Type | WLL (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | N (mm) | T (mm) | Item weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8600591 | PP-B-630kg 1/2"-13UNC | 630 | 9 | 65 | 35 | 40 | 36 | 18 | 41 | 15 | 106 | 0,35 kg |
| 8600592 | PP-B-1500kg 5/8"-11UNC | 1500 | 11 | 65 | 35 | 46 | 41 | 24 | 49 | 15 | 115 | 0,50 kg |
| 8600594 | PP-B-4000kg 1"-8UNC | 4000 | 16 | 95 | 45 | 78 | 70 | 36 | 77 | 20 | 172 | 2,40 kg |
| 8600595 | PP-B-5000kg 11/4"-7UNC | 5000 | 21 | 130 | 60 | 95 | 85 | 45 | 93 | 25 | 223 | 5,20 kg |
| 8600566 | PP-B-8000kg 11/2"-6UNC | 8000 | 24 | 140 | 65 | 100 | 90 | 300 | 102 | 28 | 242 | 6,30 kg |
| 8600593. | PP-B-2500kg 7/8"-9UNC | 2500 | 13 | 75 | 40 | 61 | 55 | 30 | 61 | 18 | 136 | 1,10 kg |
| 8600593 | PP-B-2500kg 3/4"-10UNC | 2500 | 13 | 75 | 40 | 61 | 55 | 30 | 61 | 18 | 136 | 1,10 kg |
