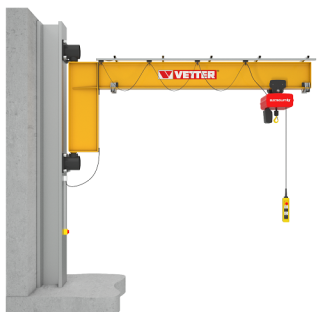

Wall-mounted slewing jib crane Geselle GN 180°, loading capacity 5000 kg, outreach 6,00 m

Item number: VGN-156

On request, we offer every crane with installation.

Contact us!

Loading capacity (kg)
Outreach (m)

Price on application

Delivery status: on demand



The wall-mounted slewing jib crane GESELLE is the perfect help from the air.

It is the useful and efficient choice for workplaces where the floor needs to be free from obstacles and a column-mounted crane does not fit in for lack of space. It reduces utilization of overhead cranes, accelerates work flow, and reduces costly downtime of staff and machines. This helpful crane can be used for feeding of machines, repair works, and in individual workplaces where capacities of up to 10,000 kg are required.

Due to its compact design, the crane features a maximum lifting height and is perfectly suitable for small and narrow operating rooms. With its optional electrical slewing gear, this slewing crane provides increased ease of use when operated in the higher capacity / outreach range. The wall-mounted slewing crane GESELLE perfectly meets your requirements for indoor and outdoor use since its jib arm length can be adjusted individually.

Advantages

  • Compact design, perfectly suited for small rooms
  • Large effective lifting height
  • Jib arm length can be adjusted to conditions on the spot
  • Outdoor use possible
  • Comfortable and smooth slewing possible by means of electrical slewing gear
  • Suitable for explosion protection according to ATEX (option)
  • Broad range of fastening options provides for convenient installation
  • High-quality coating

Technical information

  • Wall-mounted slewing jib crane
  • Type: GESELLE GN
  • Capacity: 125 to 10,000 kg
  • Ausladung: 2,000 to 12,000 mm
  • Slewing range max.: 180°
  • EN 13001 hoisting class: HC2
  • EN 13001 stability class: S3
  • Jib design: low-profile
  • Installation location: indoor / outdoor
  • Slewing: manual / electrical
  • Hoist: chain hoist / wire rope hoist
  • Explosion protection according to ATEX: optional

Outreach (m): 6
Lifting capacity (kg): 5000
