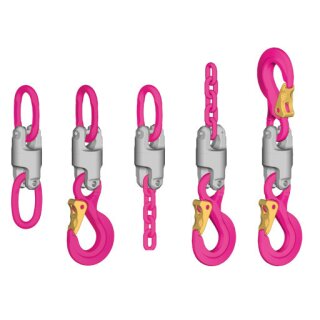

RUD VIP-all-purpose-vortex PP 2500 kg / 8 mm

Item number: UWPP.00.08

Manufacturer number: 7990880

Globus item number: 18517

EAN: 4008244295431

Working load limit (kg) / nominal size chain (mm)

159,60 €

Excluding 19% VAT. , plus shipping

Delivery status: on demand



• With a ball bearing which enables swiveling under load
• Patented clevis system facilitating a universal connection
• Can be loaded in all directions with the shortest combination possibilities Assemble only with approved RUD - VIP - chain and ring components:
• VIP-Cobra eye hook VCÖH
• Oval-Link PP-B for PowerPoint Attention: The VIP-Chain connection is fool-proof. When assembling, especially with the ring components , pay attention to the correct WLL! Not suitable for permanent use and swiveling under full load. Connecting bolt and tensioning sleeve are pre-assembled. The BGR 500/DGUV-Regel 100-500 stipulates that slings never be used while in a twisted condition. This requirement is automatically met by the UW-PP because of the integrated ball bearing.

RUD VIP-all-purpose-vortex PP 2500 kg / 8 mm
Lifting capacity: 2500 kg
Chain diameter: 8 mm
Product weight: 1,00 Kg
Loading capacity (kg): 2500kg
Globus item number: 18517
Dimension B: 9,1mm
Material number: 7990880
Dimension C: 20mm
Dimension T: 88mm
Dimension A: 52mm
Nominal thickness of chain: 8mm
Dimension S max.: 6,0mm
