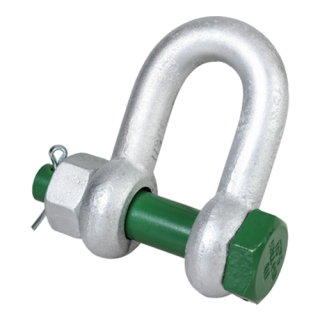

Green Pin Dee Shackle, WLL 3250 kg

Name: Green Pin Dee Shackle, WLL 3250 kg
SKU: GPGDMB16
Price: 19.73 EUR
Availability: InStock

SKU: GPGDMB16 HAN: GPGDMB16

Manufacturers: van Beest GmbH

Standard dee shackle with safety bolt

Working load limit (t)

Delivery time: 5 Workdays

19,73 €

excl. 19% VAT , plus

pcs

Pay securely via:

Industrial quality

Service

Wide Choice

Artikelinfos

Item information	Value
Item weight:	0,67 kg
Globus item number:	34341

Entdecke mehr von van Beest GmbH in unserem Shop.

Technical Data	WLL (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	i (mm)	Item weight
GPGDMB32	12000	32	35	72	32	51	94	180	178	30	4,51 kg
GPGDMB13	2000	13,5	16	34	13	22	43	81	82	13	0,39 kg
GPGDMB16	3250	16	19	40	16	27	51	97	98	17	0,67 kg
GPGDMB19	4750	19	22	46	19	31	59	112	114	19	1,08 kg
GPGDMB22	6500	22	25	52	22	36	73	134	130	22	1,66 kg
GPGDMB25	8500	25	28	59	25	43	85	154	150	25	2,46 kg
GPGDMB28	9500	28	32	66	28	47	90	167	166	27	3,40 kg
GPGDMB35	13500	35	38	80	35	57	115	209	197	33	6,10 kg
GPGDMB38	17000	38	42	88	38	60	127	230	202	19	7,63 kg
GPGDMB45	25000	45	50	103	45	74	149	271	249	23	12,90 kg
GPGDMB50	35000	50	57	111	50	83	171	305	269	26	17,40 kg
GPGDMB57	42500	57	65	130	57	95	190	345	301	29	25,90 kg
GPGDMB65	55000	65	70	145	65	105	203	376	330	32	35,30 kg
GPGDMB75	85000	75	83	162	73	127	229	427	380	39	53,00 kg

Artikelinfos

Item information	Value
Item weight:	0,67 kg
Globus item number:	34341

Others also bought:

Grade 80 Chain, 16x48, WLL 8000 kg

61,10 € *

SupraPlus quality round sling 2000 kg, length 1 m

39,20 € *

Green Pin Dee Shackle, WLL

14,60 € *

SpanSet Rundschlinge Liftfix - die preiswerte Variante - Tragfähigkeit 3000 kg, Länge 0,5 m

7,20 € *

Coil tipping hook - WLL 1000 kg / inside diameter min. 300 mm

Price on request

Coil tipping hook - WLL 2500 kg / inside diameter min. 300 mm

Price on request

Similar items

Tragfähigkeit (t): 2,00 t

13,83 € *

Tragfähigkeit (t): 3,25 t

19,73 € *

Tragfähigkeit (t): 4,75 t

24,93 € *

Tragfähigkeit (t): 6,50 t

37,08 € *

Tragfähigkeit (t): 8,50 t

53,30 € *

Tragfähigkeit (t): 9,50 t

76,68 € *

Tragfähigkeit (t): 12,0 t

103,28 € *

Tragfähigkeit (t): 13,5 t

137,90 € *

Tragfähigkeit (t): 17,0 t

164,30 € *

Tragfähigkeit (t): 25,0 t

284,43 € *

Tragfähigkeit (t): 35,0 t

336,68 € *

Tragfähigkeit (t): 42,5 t

685,83 € *

Tragfähigkeit (t): 55,0 t

825,33 € *

Tragfähigkeit (t): 85,0 t

1.367,50 € *

Material: bow and pin high tensile steel, grade 6, quenched and tempered, Safety Factor: MBL equals 6 x WLL, Standard: EN 13889, ASME B30.26 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVB Class 3, grade A, Finish: hot dipped galvanized, Temperature Range: -40°C up to +200°C, If extreme temperature situations occur, the following load reductions must be taken into account: up to 200°C = 100% of original Working Load Limit, 200-300°C = 90% of original Working Load Limit, 300-400°C = 75% of original Working Load Limit, > 400°C = not allowed
