ICE-Connecting Lock IVS 12500 kg / 16 mm

SKU: ICE.IVS.16 GTIN: 4008244282240 HAN: 7901475

Manufacturers: RUD Ketten Rieger & Dietz

Working load limit (kg) / nominal size chain (mm)

Delivery time: 0 Workdays

114,00 €

excl. 19% VAT , plus

Pay securely via:

Industrial quality

Service

Wide Choice

Artikelinfos

Item information	Value
Chain diameter (mm):	16
Grade:	12 (ICE)
Load capacity range:	10.001 - 20.000 kg
WLL (kg):	12500
Item weight:	2,00 kg
Globus item number:	31028
Nominal thickness of chain (mm):	16

Entdecke mehr von RUD Ketten Rieger & Dietz in unserem Shop.

ICE-Connecting Lock IVS 12500 kg / 16 mm

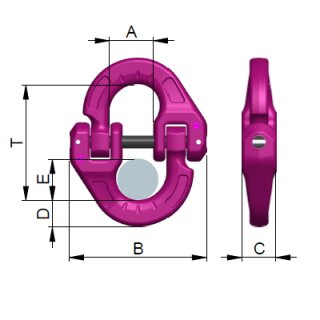

Technical Data	Type	WLL (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	T (mm)	Item weight
ICE.IVS.06	IVS-6	1800	18	56	13	10,5	17	21	46	0,12 kg
ICE.IVS.08	IVS-8	3000	24	70	17,5	14	23	27,5	61	0,29 kg
ICE.IVS.10	IVS-10	5000	28	88	22	17	27	32	74	0,61 kg
ICE.IVS.13	IVS-13	8000	34	111	28	23	33	40	93	1,20 kg
ICE.IVS.16	IVS-16	12500	39	130	33	27	37	46	108	2,00 kg

Artikelinfos

Item information	Value
Chain diameter (mm):	16
Grade:	12 (ICE)
Load capacity range:	10.001 - 20.000 kg
WLL (kg):	12500
Item weight:	2,00 kg
Globus item number:	31028
Nominal thickness of chain (mm):	16

accessories

RUD spare part set for VIP and ICE connecting locks

Similar items

Tragfähigkeit (kg) / Kettennenndicke (mm): 1800kg / 6mm

Tragfähigkeit (kg) / Kettennenndicke (mm): 3000kg / 8mm

Tragfähigkeit (kg) / Kettennenndicke (mm): 5000kg / 10mm

Tragfähigkeit (kg) / Kettennenndicke (mm): 8000kg / 13mm

Tragfähigkeit (kg) / Kettennenndicke (mm): 12500kg / 16mm

The all-purpose ICE - coupling link. The connecting pin is held by a reliable safety tensioning sleeve. It does not move around and hence less vulnerable to being damaged. On to the link brackets, various extrinsic connections eg: lifting points, grabs and chains can be mounted.

Item information	Value
Chain diameter (mm):	16
Grade:	12 (ICE)
Load capacity range:	10.001 - 20.000 kg
WLL (kg):	12500
Item weight:	2,00 kg
Globus item number:	31028
Nominal thickness of chain (mm):	16

Katalog ICE Ketten und Zubehör
