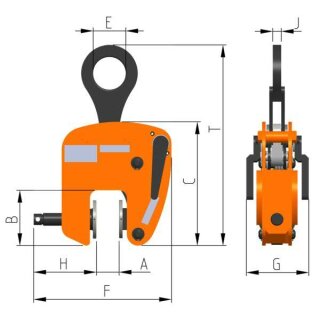

| Technical Data | WLL (kg) | Gripping area A (mm) | B (mm) | C (mm) | E (mm) | F (max) (mm) | G (mm) | H (mm) | J (mm) | T (mm) | Item weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HK.NMBL.05 | 500 | 0-16 | 92 | 203 | 60 | 194 | 108 | 87 | 13 | 313 | 7,00 kg |
| HK.NMBL.10 | 1000 | 0-19 | 92 | 203 | 60 | 192 | 108 | 87 | 13 | 302 | 7,80 kg |
| HK.NMBL.20 | 2000 | 0-51 | 124 | 276 | 76 | 306 | 140 | 138 | 19 | 449 | 14,00 kg |
| HK.NMBL.40 | 4000 | 6-38 | 182 | 411 | 76 | 159 | 216 | 207 | 32 | 604 | 57,00 kg |
Description
Productinformation in detail
Question about item
Ask us a product question.
Reviews
We look forward to your product review!
Description
Productinformation in detailClamps in the NMBL series (damage-free) are manufactured with a smooth gripping surface to prevent gentle lifting of plates with sensitive surfaces such as mild steel, stainless steel, copper, aluminium and other polished sheets.
The clamp is equipped with a special "open lock" as well as a protection against unintentional opening under load ("closed lock") to make it easier to attach and detach the clamp from the panel.
An adjusting screw can be used to compensate for differences in panel thickness. The clamp is supplied with stainless steel gripping surfaces. Steel or bronze versions are also available on request.
Due to the wide range of panel handling conditions, we recommend using the clamps in pairs, either attached to a chain or to a wire rope hanger with spreader beam for better load distribution.
With smooth gripping surfaces made of stainless steel, steel or bronze versions are also available on request. Ask us about them!
